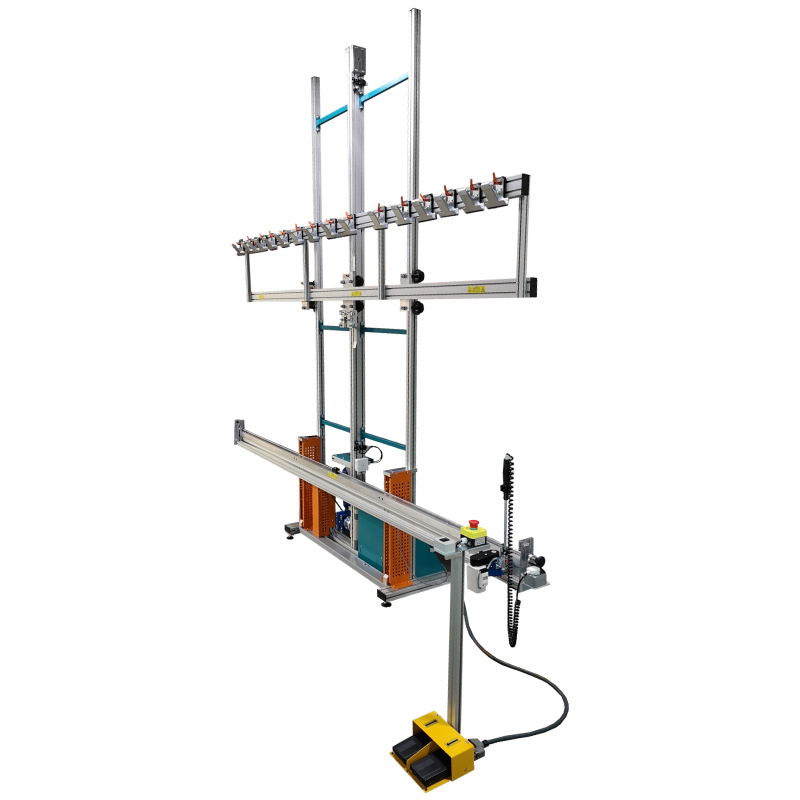

VERTICAL CURTAIN CUTTING MACHINE UCF-1

Key features:

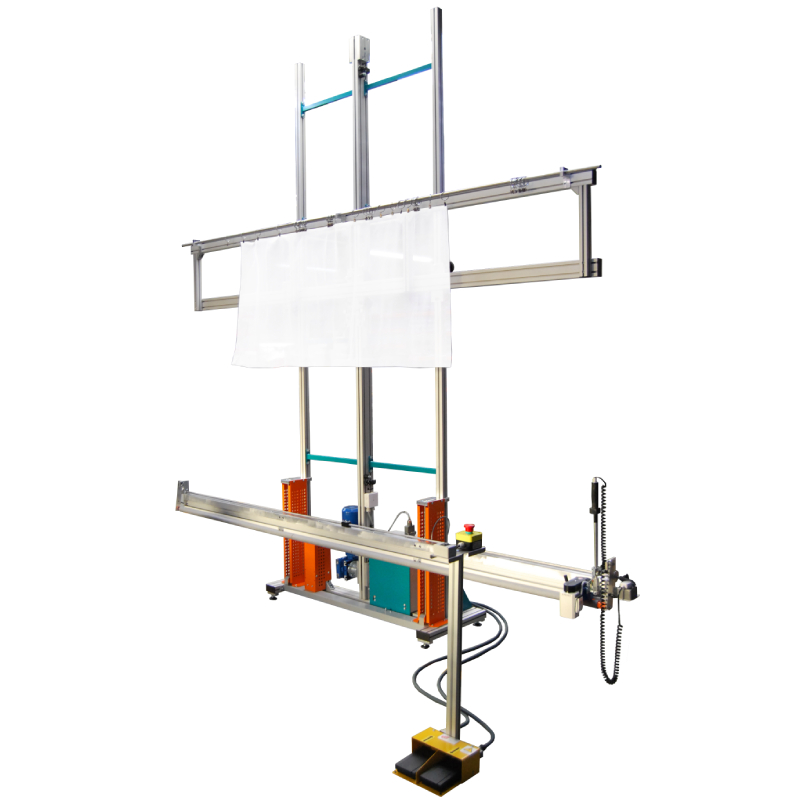

- The machine is based on WK-1 roller blinds inspection hoist. It is used to measure and cut textile materials to the desired length.

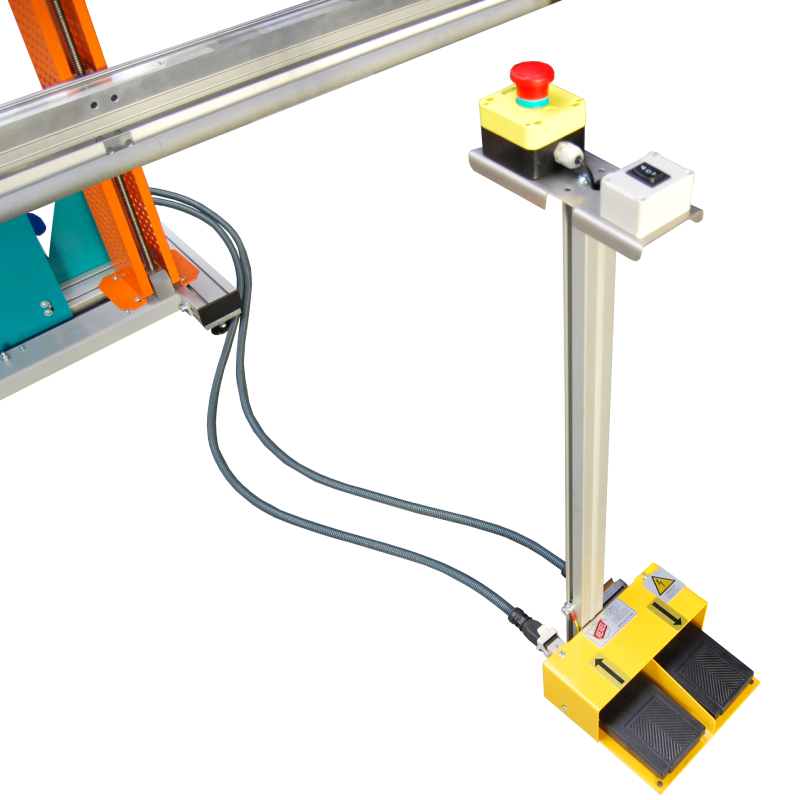

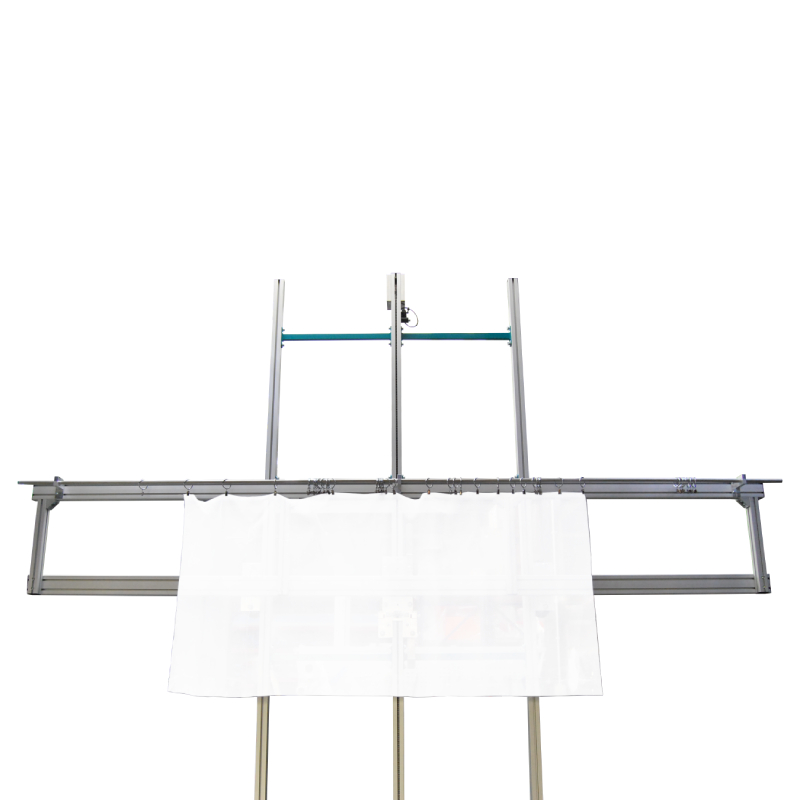

- The material is attached with clips to the upper bar which can be raised to the desired height via the foot control system.
- The material is cut with the manual end cutter OT-1/R (with long handle). The end cutter is mounted on the movable lower bar. The lower bar has a range of motion within ~ 230-700 mm. The lower arm moves with the help of an electric motor and a screw mechanism.
- Thanks to this solution it is possible to precisely set the length of the cut material. The lower bar is controlled by a manual switch. In addition, the lower arm has a manual fabric clamp.

NOTE - it is not possible to move the lower and upper bar at the same time.


Specifications:

1. Upper bar

- Power supply: 0.4kW 3f400V 50 / 60Hz or 1ph 230V 50/60 Hz

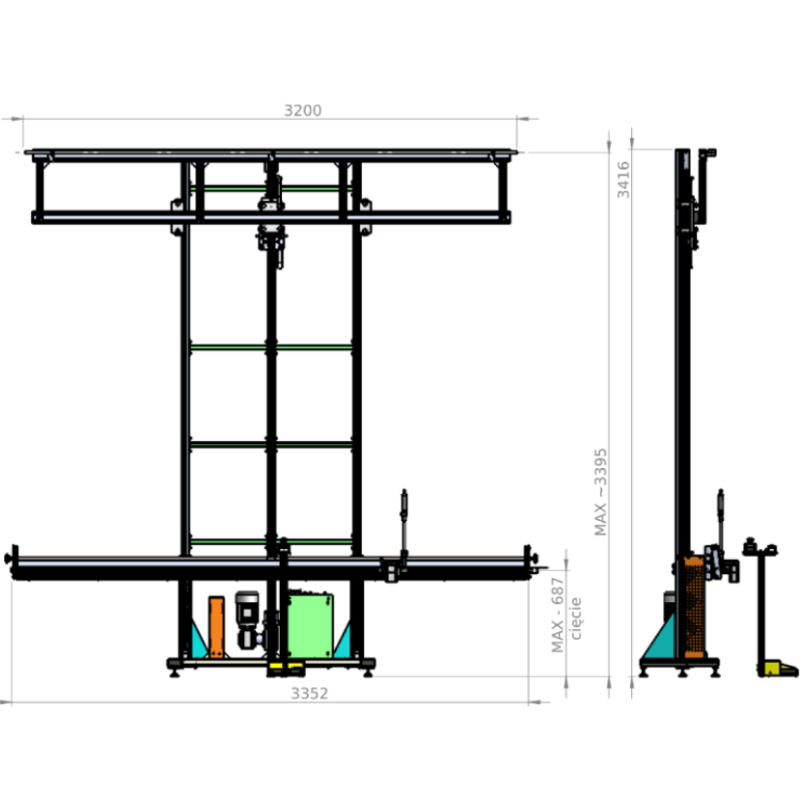

- Dimensions: ~ 3400x3100x500 mm*
- Max. lifting height: 3000 (option 4000) mm
- Max. width 3000 (option 4000) mm
- Lifting speed approx. 0.3 m / sec
- Weight approx. 60 kg
- Maximum load capacity: 20 kg

2. Lower bar

-  Electric motor power: 210W (230V power supply)
- Length: 3300 (option 4300) mm

* Custom sizes are available on request.
